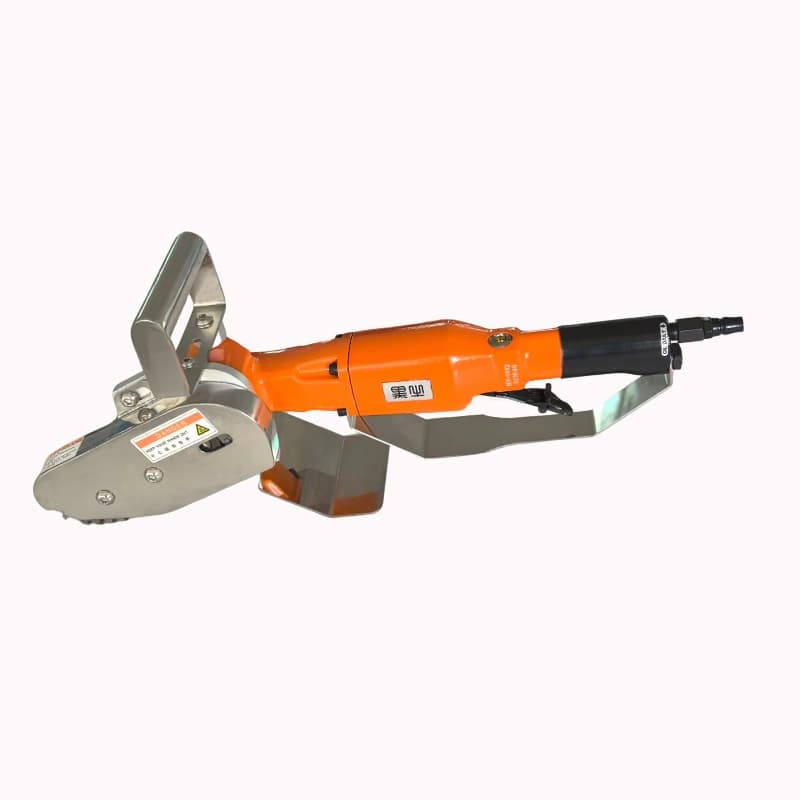

Die cutting edge paper machine HS-2936 instructions:

1. These waste paper trimming machine tools are for use, not for maintenance.
2. The pneumatic waste stripper machine requires a running-in period, after which the chain and sprocket should slide freely. Adding a few drops of gear oil to the chain every half working day reduces friction and extends its service life.
3. Ensure that the machine is connected to the air source with an air pressure of 6-8kg, using an 8*12m/m air pipe for normal operation.
4. Before opening the air pressure, manually check if the chain can roll freely. Adjust the paper grabbing direction of the waste cleaning machine and fix the locking screw to prevent swinging.
5. Open the sliding switch before operation or adjust the front pressure regulating valve to the maximum.
6. Inject professional air tool oil and lubricating motor from the air inlet.
7. When working, press the pressing plate three times to start working.
8. Before and after work each day, ensure to drip three to four drops of special oil for pneumatic tools from the air inlet and idle for 2-3 seconds.

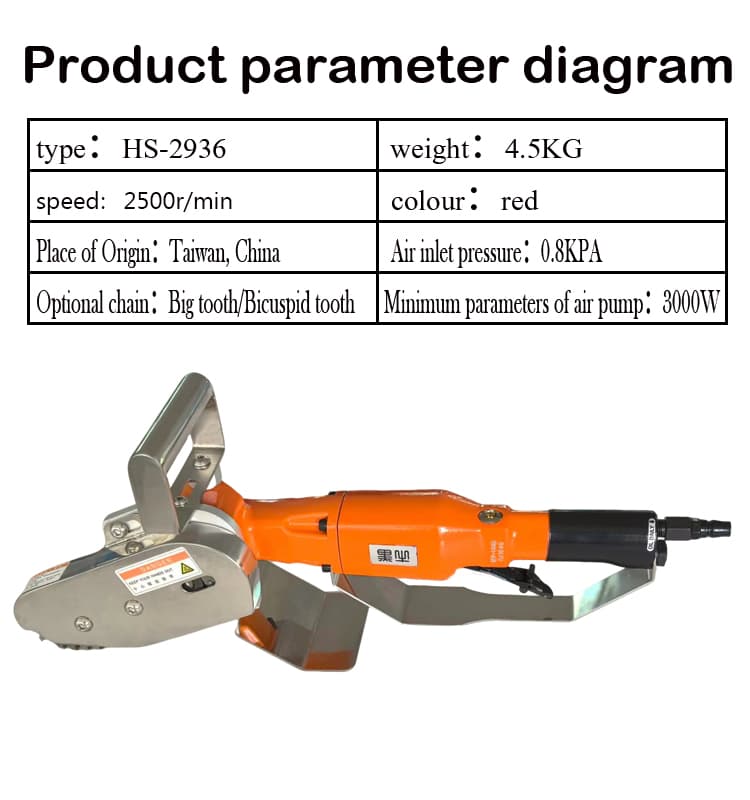

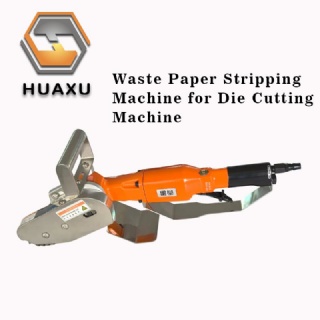

HS-2936S strong powerful Pneumatic Waste Stripping Parameter introduction：

The use of the waste stripper must be equipped with a mold cutting knife. Refer to this picture for the placement of the cutting edge:
