Parameters of Huaxu four-open inner hole waste stripper machine:
|
Machine Model: HS-650 |
Compressed air (bar): 6-8 |
|
Maximum waste cleaning format (mm): 720*500 (according to paper and material) |
Maximum stack height (mm): 70-100 |
|
Table height (mm): 800 |
Minimum clear inner hole position (mm): 3 |
|
Hole clearing speed (times/min): 15-20 |
Maximum pressure (T): 1.5 |
|
Dimension(mm):850*660*1600 |
Machine net weight (kg): 175 |
|
Supply voltage (V): 220 |
Frequency (Hz): 50/60 |

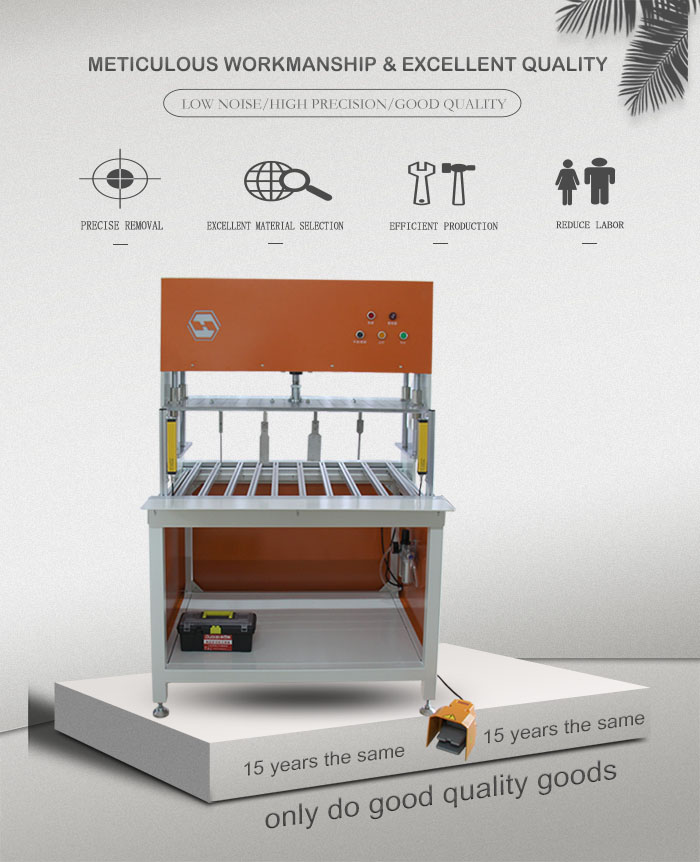

HS-650 inner hole waste stripper features:

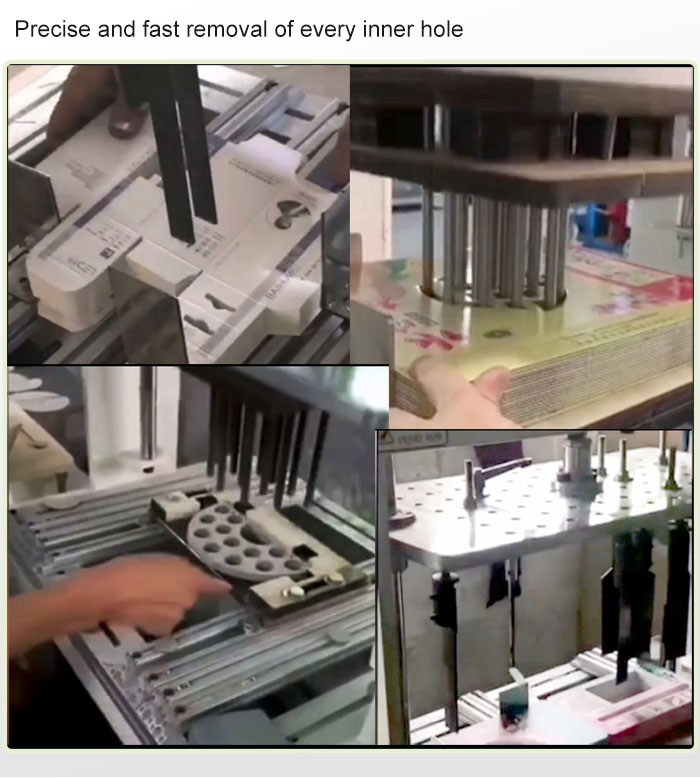

This machine is mainly used for color printing packaging enterprises after various color
box carton die-cutting residual inner holes (round holes, square holes, long strip holes,
aircraft holes, special-shaped holes...) Removal of waste paper. Applicable to hang tags,
paper boxes, color boxes.... and other clearance of one or more holes.
Merit:
1. High accuracy and easy operation.
2. The mold can be customized, the punching die can be increased and decreased,
and dozens of molds can be installed at the same time to clean dozens of waste holes at a time.
3. Multiple holes are cleared at the same time to improve work efficiency.
4. The die produces pressure on the product and does not destroy the integrity of the product.
5. Built-in paper confetti collection bin.
Tips for use:
The user is equipped with an air compressor, in order to make the normal long-term operation
of Huaxu waste cleaner reliable, please keep the pressure of the compressed air input into the
machine at 0.63MPa and dry treatment, so it is recommended that the customer install and use
the air filtration combination (double part) connected to the output end of the air compressor.
How to do it:
1. This equipment adopts single-phase 220V power supply and uses compressed air as the power source. Stable air pressure 6-8kg.
2. Turn on the power switch, put the product on the working platform, use the paper positioning plate to set the product in position, the switch is marked with "manual", and the ejector pin is installed in the vacant position.
3. After the ejector pin is installed, jog the upper and lower switches to check whether the ejector pin is aligned with the hole position, and after alignment, set the switch as "automatic".
4. Enter the working state, each time the paper is not higher than the paper baffle, and the product is placed neatly, step on the foot switch.
