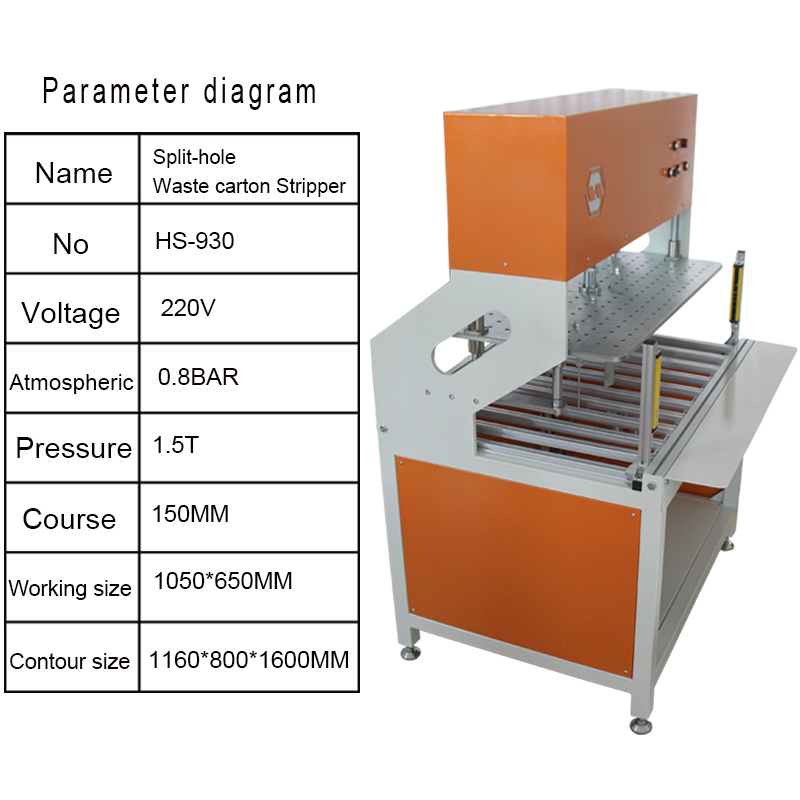

Parameters of Huaxu HS-930 inner hole waste stripper machine:
|
Machine Model: HS-930 |
Compressed air (bar): 6-8 |
|
Maximum waste cleaning format (mm): 1050*640 (according to paper and material) |
Maximum stack height (mm): 70-100 |
|
Table height (mm): 800 |
Minimum clear inner hole position (mm): 3 |
|
Hole clearing speed (times/min): 15-20 |
Maximum pressure (T): 1.5 |
|
Dimension(mm):1160*800*1600 |
Machine net weight (kg): 285 |
|
Supply voltage (V): 220 |
Frequency (Hz): 50/60 |

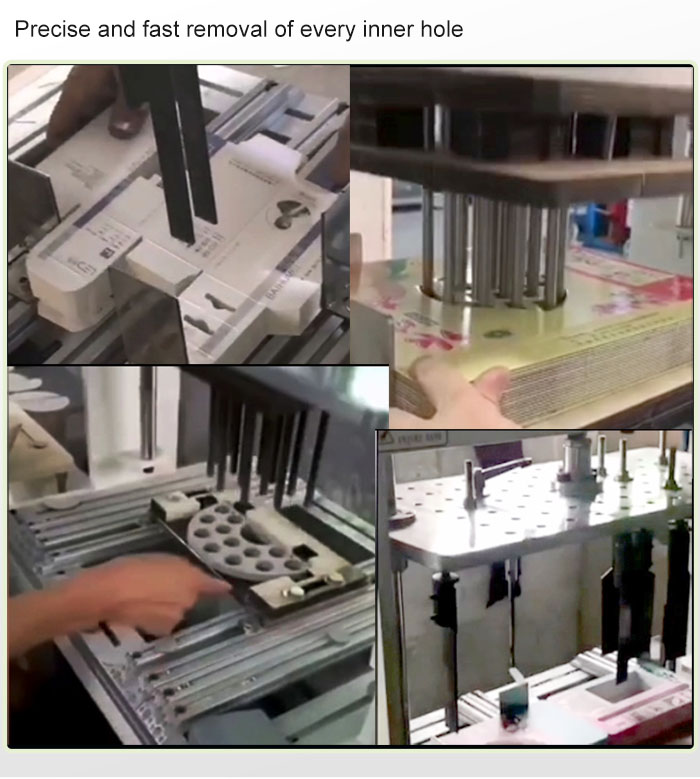

The HS-930 inner hole waste stripper is designed for color printing packaging companies to remove residual inner holes (such as round, square, long strip, aircraft, and special-shaped holes) left after die-cutting cartons. It is suitable for clearing one or more holes in hang tags, paper boxes, color boxes, and other packaging materials.
Advantages:
1. Offers high precision and simple operation.

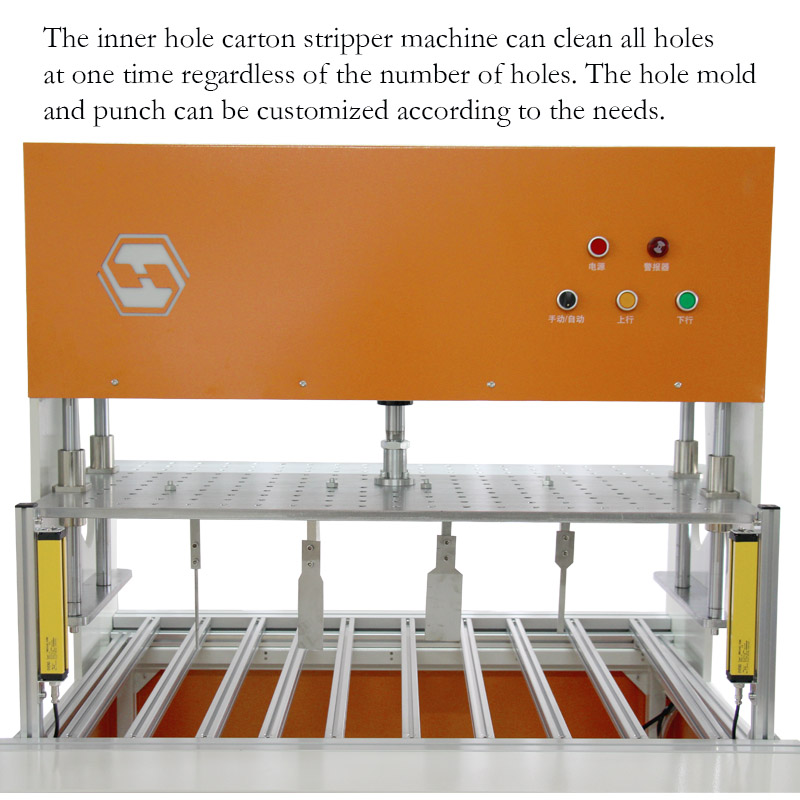

2. Customizable molds allow for adjusting the number of punching dies, enabling the simultaneous cleaning of multiple waste holes with the installation of numerous molds.
3. Simultaneous clearance of multiple holes enhances work efficiency.
4. The die applies pressure to the product without compromising its integrity.
5. Equipped with a built-in paper confetti collection bin.
Usage recommendations:
To ensure the reliable long-term operation of the Huaxu waste cleaner, it is essential for the user to have an air compressor. Maintain the pressure of the compressed air input into the machine at 0.63MPa and ensure dry treatment. For optimal performance, it is advised that customers install and use an air filtration combination (double part) connected to the output end of the air compressor.
How to operate:
1. This equipment operates on a single-phase 220V power supply and utilizes compressed air as the power source. Maintain stable air pressure between 6-8kg.
2. Switch on the power, place the product on the working platform, use the paper positioning plate to align the product, and switch to "manual" mode, ensuring the ejector pin is installed in the designated position.
3. After installing the ejector pin, use the upper and lower switches to jog and verify the alignment of the ejector pin with the hole position. Once aligned, switch to "automatic" mode.
4. Enter the working mode, ensuring that each piece of paper does not exceed the paper baffle and that the product is neatly placed. Step on the foot switch to initiate the process.
